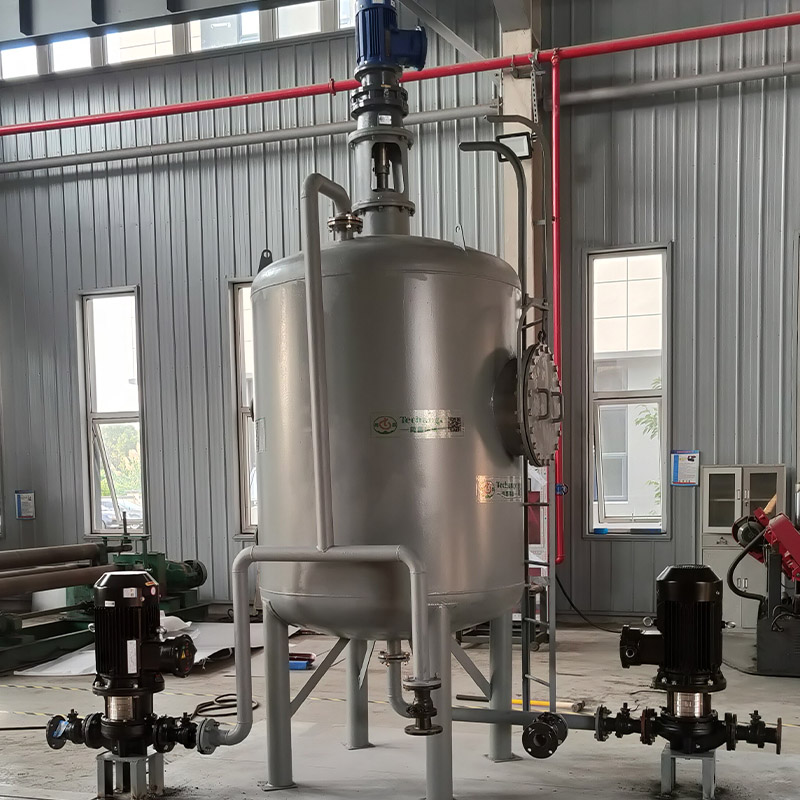

The filter with walnut shells is mainly used in petrochemical and other
oily
high strength and good wear resistance is used as the filter medium. It can be used in
single pole or series to ensure the effluent quality.
1.Backwashing with filtered water,no gas source,low operation cost.
2.The filter material has good oil resistance and does not need to be replaced.It
only needs to be supplemented by 10% every year.
3. According to the effluent requirements, series or parallel operation can be flexibly
adopted.
Technical Parameters
| Performance items | SPECIFICATION | Performance items | Specific indicators | |
| Unit Capacity | 10-140m³/h | Backwashing strength | 0.3m³/min-㎡ | |
| Filter Speed | 20m/h | Backwash duration | 20-30min | |
| Design Pressure | 0.6MPa | Backwashing water ratio | 1-3 | % |
| Resistance Loss & Force | Series ≤0.2MPa Paralleling≤0.2MPa | Removal rate | Suspended solids | 75-80% |
| Oil | 85-95% | |||
| Work Cycle | 8-24h | |||
| Coarse filter(single unit, parallel) | Oil content in incoming water≤100mgL | Oil content in incoming water≤10mgL | ||
| Fine filter(single unit,parallel) | Oil content in inlet water≤20mgL | Oil content in inetwater≤5mgL | ||
| Item | Capacity (m³/h) | Tank Diaq (mm) | Filter Area (mm) | Supporting water pump (recommended) | Mixer (kw) | ||
| Model | Head(m) | Power(kw) | |||||
| GHL-800 | 10 | 800 | 0.50 | IS50-32-200A | 35 | 4 | 4 |
| GHL-801 | 15 | 1000 | 0.79 | IS65-50-200A | 38 | 5.5 | 4 |
| GHL-802 | 20 | 1200 | 1.13 | IS80-65-160A | 35 | 7.5 | 4 |
| GHL-803 | 40 | 1600 | 2 | IS80-50-200A | 45 | 15 | 5.5 |
| GHL-804 | 60 | 2000 | 3.14 | IS100-65-160A | 38 | 18.5 | 11 |
| GHL-805 | 90 | 2400 | 4.53 | IS100-65-200A | 45 | 22 | 20 |
| GHL-806 | 100 | 2600 | 5.31 | IS150-125-400A | 38 | 37 | 22 |
| GHL-807 | 120 | 2800 | 6.15 | IS150-125-400A | 38 | 37 | 30 |
| GHL-808 | 140 | 3000 | 7.07 | IS150-125-400A | 38 | 37 | 30 |
| Model &Size | Φ | Φ1 | Φ2 | H | H1 | H2 | H3 | H4 | H5 | A | n-d | DN1 | DN2 | Dn3 | Foundation load(t/㎡) |
| GHL-800 | 800 | 800 | 185 | 2725 | 350 | 990 | 110 | 70 | 60 | 548 | 8-Φ26 | 65 | 50 | 65 | 3.9 |
| GHL-1000 | 1000 | 1000 | 210 | 2980 | 500 | 990 | 100 | 75 | 100 | 700 | 8-ф26 | 80 | 50 | 80 | 3.2 |
| GHL-1200 | 1200 | 1180 | 216 | 2980 | 400 | 990 | 115 | 75 | 80 | 835 | 8-Φ30 | 100 | 50 | 100 | 3.3 |
| GHL-1600 | 1600 | 1580 | 240 | 3310 | 500 | 1060 | 120 | 75 | 100 | 1100 | 8-Φ30 | 125 | 50 | 125 | 3.5 |
| Model & Size | Φ | Φ1 | H | H1 | H2 | H3 | H5 | A | n-d | DN1 | DN2 | Dn3 | Foundation load(t/㎡) |
| GHL-2000 | 2000 | 2100 | 3750 | 245 | 950 | 130 | 150 | 600 | 8-Φ32 | 150 | 80 | 150 | 4.4 |
| GHL-2400 | 2000 | 2500 | 3960 | 257 | 950 | 150 | 150 | 600 | 8-Φ32 | 200 | 100 | 200 | 4.7 |
| GHL-2600 | 2600 | 2716 | 4328 | 344 | 1000 | 200 | 150 | 700 | 8-Φ32 | 200 | 100 | 200 | 4.9 |
| GHL-2800 | 2800 | 2900 | 4100 | 270 | 1000 | 200 | 150 | 800 | 8-Φ32 | 250 | 100 | 250 | 5.0 |
| GHL-3000 | 3000 | 3120 | 4630 | 350 | 1000 | 200 | 150 | 820 | 12-Φ32 | 300 | 100 | 300 | 5.2 |
Requirements for Order
1.The interface flange standard of the equipment is JB/t81-94, PN1.0MPa.
2.Special requirements for anticorrosion or lining shall be noted.
3.This equipment Φ> When it is 3.6m,it needs to be ordered on site.
4. This equipment does not include pipeline,pump and valve. If it needs to be ordered separately.
5.For the automatic control and layout of multiple equipment, please refer to other information.
Note:
1.Other type filter can be customized according to your
request as well.
2.Relaxed inquiry specifications can be sent to us for the
model selection accordingly.
