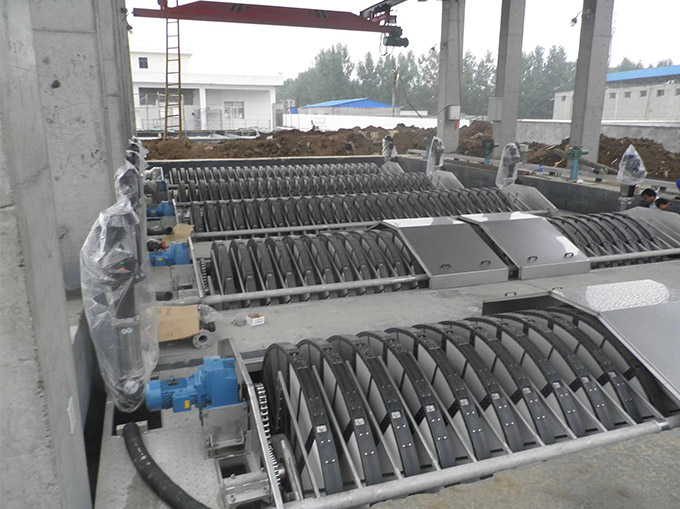

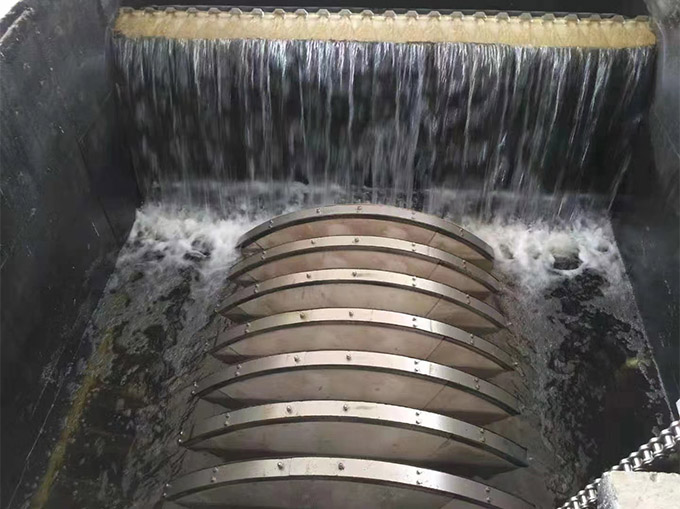

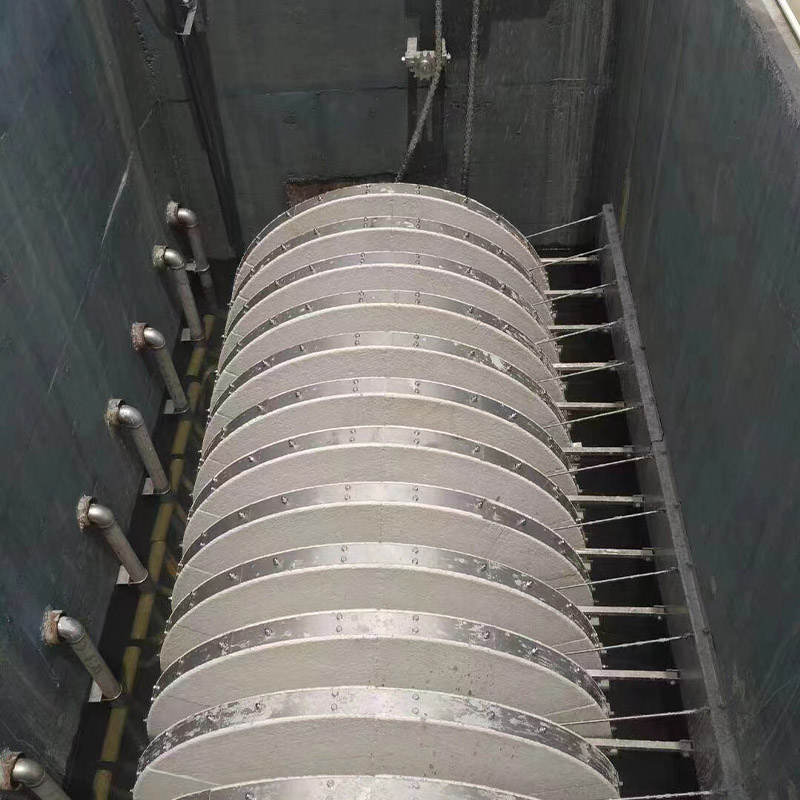

SITE PICTURE:
MODEL SELECTION:
DISC DIA 1500MM:
| MODEL | CAPACITY (M3/DAY) | DISC DIA (MM) | INDIVIDUAL DISC FILTR AREA(M2) | DISC (PCS) | POWER(KW) |
| XLZP1500-4 | 1000 | 1500 | 5 | 4 | 0.75 |
| XLZP1500-6 | 3000 | 1500 | 5 | 6 | 0.75 |
| XLZP1500-8 | 5000 | 1500 | 5 | 8 | 0.75 |
| XLZP1500-12 | 8000 | 1500 | 5 | 12 | 1.5 |
| XLZP1500-18 | 10000 | 1500 | 5 | 18 | 1.5 |
| XLZP1500-28 | 15000 | 1500 | 5 | 28 | 3 |
| XLZP1500-34 | 20000 | 1500 | 5 | 34 | 3.5 |
| XLZP1500-40 | 30000 | 1500 | 5 | 40 | 3.5 |
DISC DIA 2000MM:
| MODEL | CAPACITY (M3/DAY) | DISC DIA (MM) | INDIVIDUAL DISC FILTR AREA(M2) | DISC (PCS) | POWER(KW) |
| XLZP2000-2 | 1000 | 2000 | 7 | 2 | 0.55 |
| XLZP2000-4 | 3000 | 2000 | 7 | 4 | 0.75 |
| XLZP2000-6 | 5000 | 2000 | 7 | 6 | 0.75 |
| XLZP2000-10 | 8000 | 2000 | 7 | 10 | 1.1 |
| XLZP2000-12 | 10000 | 2000 | 7 | 12 | 1.1 |
| XLZP2000-18 | 15000 | 2000 | 7 | 18 | 1.5 |
| XLZP2000-24 | 20000 | 2000 | 7 | 24 | 2.2 |
| XLZP2000-30 | 30000 | 2000 | 7 | 30 | 3 |
DISC DIA 3000MM:
| MODEL | CAPACITY (M3/DAY) | DISC DIA (MM) | INDIVIDUAL DISC FILTR AREA(M2) | DISC (PCS) | POWER(KW) |
| XLZP3000-1 | 1000 | 3000 | 11 | 1 | 0.75 |
| XLZP3000-3 | 3000 | 3000 | 11 | 3 | 1.1 |
| XLZP3000-5 | 5000 | 3000 | 11 | 5 | 1.1 |
| XLZP3000-9 | 8000 | 3000 | 11 | 9 | 1.5 |
| XLZP3000-11 | 10000 | 3000 | 11 | 11 | 2.2 |
| XLZP3000-16 | 15000 | 3000 | 11 | 16 | 2.2 |
| XLZP3000-23 | 20000 | 3000 | 11 | 23 | 3.5 |
| XLZP3000-29 | 30000 | 3000 | 11 | 29 | 3.5 |
NOTE:
1. ABOVE IS OUR STANDAR MODEL, DIA , PCS & MESH OF DISC CAN BE CUSTIMIZED ACCORING TO YOUR SITE CAPACITY AS WELL.
2. SMALL CAPACITY CAN BE MADE WITH INTEGRATED STEEL TANK AT OUR FACTORY.
3. CIVIL TANK IS NECESSARY FOR LARGR CAPACITY
