Product details :

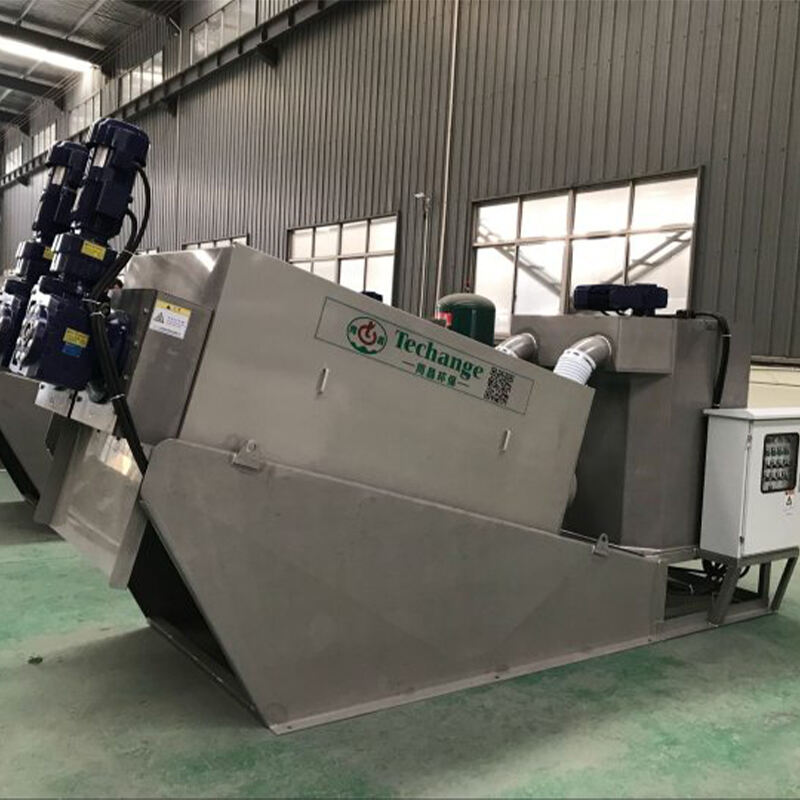

The equipment is widely used for lower consistency sewage wastewater and is composed of thickening part& dehydration part, The consistency range can be from 2500mg/L to 20000mg/L, thus the investment can be reduced a lot. It’s a professional integrated thickening & dewatering sludge dehydrator .
| Model | DS of standard processing | Sludge processing | |||
| 2500mg/L | 5000mg/L | 10000mg/L | 20000mg/L | ||
| YDL301 | 40~70kg/h | ~16㎡/h | ~10㎡/h | ~7㎡/h | ~3.5㎡/ |
| YDL302 | 80~140kg/h | ~32㎡/h | ~20㎡/h | ~14㎡/h | ~7㎡/h |
| YDL303 | 120~210kg/h | ~48㎡/h | ~30m/h | ~21m/h | ~10.5㎡/h |
| YDL304 | 160~280kg/h | ~64㎡3/h | ~40m3/h | ~28m3/h | ~14㎡3/h |
| YDL351 | 80~120kg/h | ~32㎡3/h | ~16㎡3/h | ~12m3/h | ~6㎡3/h |
| YDL352 | 160~240kg/h | ~64m3/h | ~32m3/h | ~24m3/h | ~12m3/h |
| YDL353 | 240~360kg/h | ~96㎡3/h | ~48m3/h | ~36m3/h | ~18m3/h |
| YDL354 | 320-480kg/h | -128㎡3/h | -64m3/h | ~48m3/h | -24m3/h |
| YDL401 | 100-160kg/h | -40㎡3/h | -26m3/h | -16m3/h | -8㎡/h |
| YDL402 | 200-320kg/h | ~80m3/h | ~52m3/h | ~32m3/h | ~16m3/h |
| YDL403 | 300~480kg/h | ~120㎡/h | ~78㎡3/h | ~48m3/h | ~24m3/h |
| YDL404 | 400~640kg/h | ~160㎡3/h | ~104㎡3/h | ~64m3/h | ~32㎡3/h |
