Product details ：

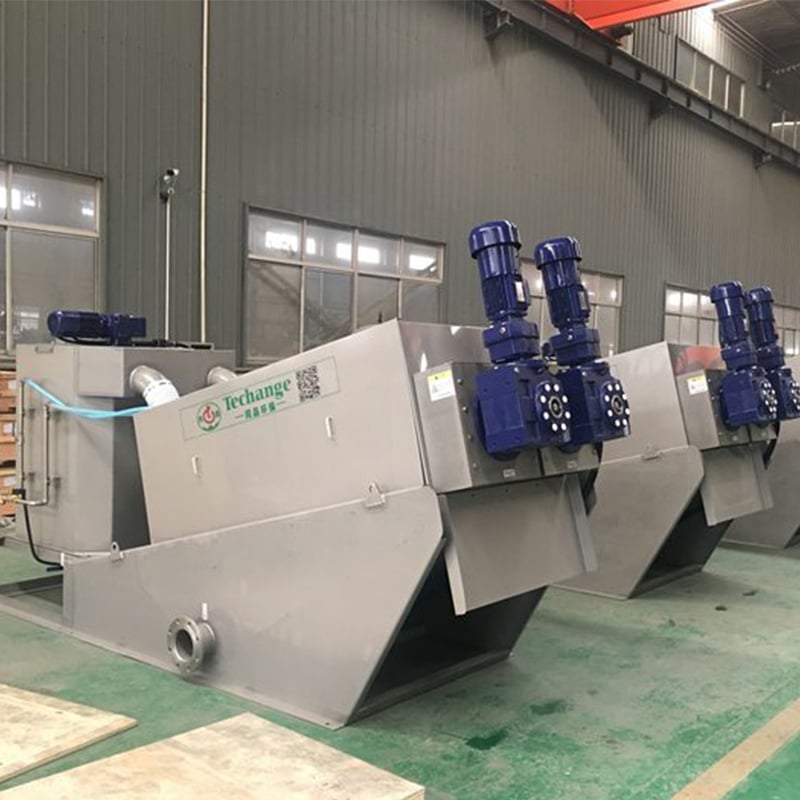

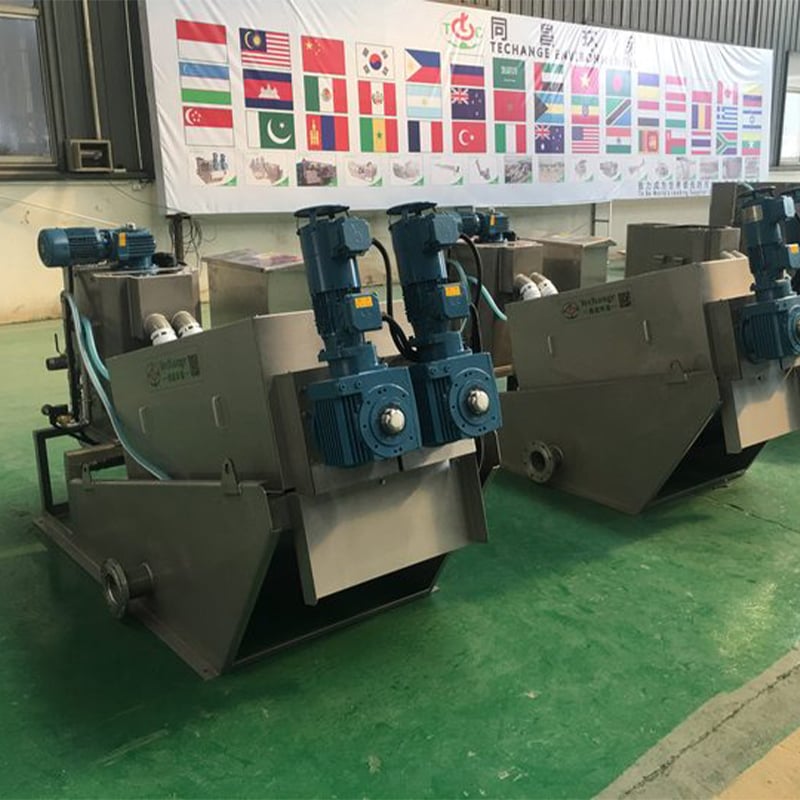

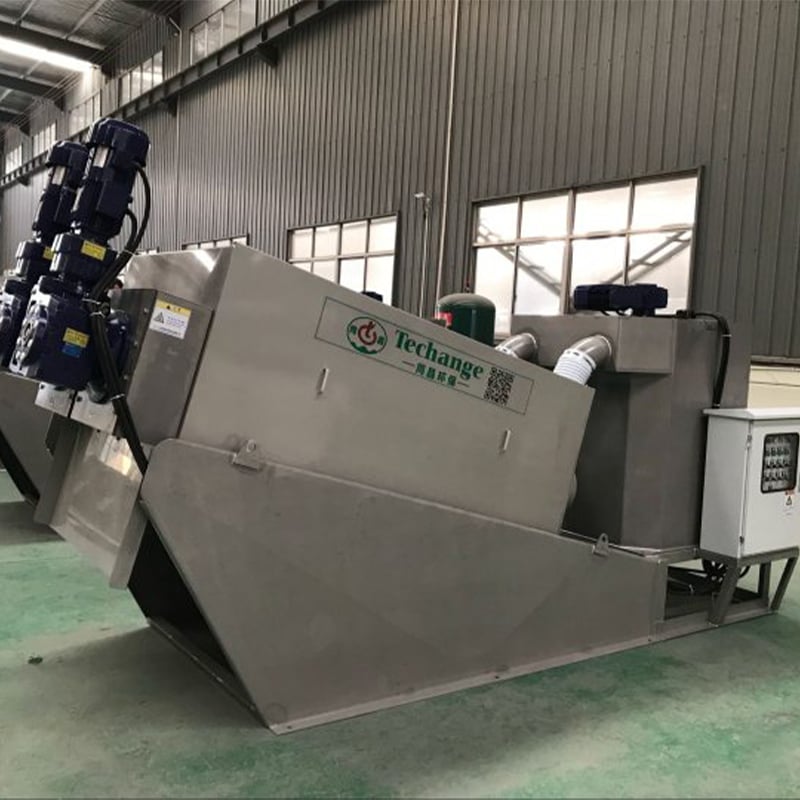

The sludge can be condensed rapidly and continuously in the secondary sedimentation tank, meanwhile, after condensed and separated, the sludge concentration can be adjusted between 90% and 96% stably. it’s a special thickener equipment.
Application:
It is the pre-treat device of sludge deep dewatering ,also as the auxiliary equipment of ultra high pressure elastic presser, membrane filter presser.
Instead of condensed tank, work as the pre-treat device of the sludge dewatering system.
Sludge dewatering in the municipal & industrial wastewater treatment system.
Solid and liquid separation in the municipal & industrial wastewater treatment system.
Other wastewater treatment applications in the municipal & industrial wastewater treatment system.
Parameter table:
| Model | Dry Sludge treating capacity | Sludge treating capacity | |||
| 2500mg/L | 5000mg/L | 10000mg/L | 20000mg/L | ||
| MYDN301 | 70~100kg/h | 28㎡/h | 14㎡/h | 10㎡/h | 5㎡/h |
| MYDN302 | 140~200kg/h | 56m/h | 28㎡/h | 20m/h | 10㎡/h |
| MYDN303 | 210-300kg/h | 84㎡/h | 42㎡/h | 30㎡/h | 15㎡/h |
| MYDN304 | 280-400kg/h | 112㎡/h | 56㎡/h | 40㎡/h | 20㎡/h |
| MYDN351 | 120~160kg/h | 48㎡/h | 24㎡/h | 16㎡/h | 8㎡/h |
| MYDN352 | 240~320kg/h | 96㎡/h | 48㎡/h | 32m3/h | 16㎡/h |
| MYDN353 | 360~480kg/h | 144㎡/h | 72㎡/h | 48㎡/h | 24㎡/h |
| MYDN354 | 480~640kg/h | 192㎡/h | 96㎡/h | 64㎡/h | 32㎡/h |
| MYDN401 | 200~300kg/h | 80㎡/h | 40㎡/h | 30㎡/h | 15㎡/h |
| MYDN402 | 400~600kg/h | 160㎡/h | 80㎡/h | 60㎡/h | 30㎡/h |
| MYDN403 | 600~900kg/h | 240m/h | 120㎡/h | 90㎡/h | 45㎡/h |
| MYDN404 | 800~1200kg/h | 320㎡/h | 160㎡/h | 120㎡/h | 60㎡/h |
