Product details ：

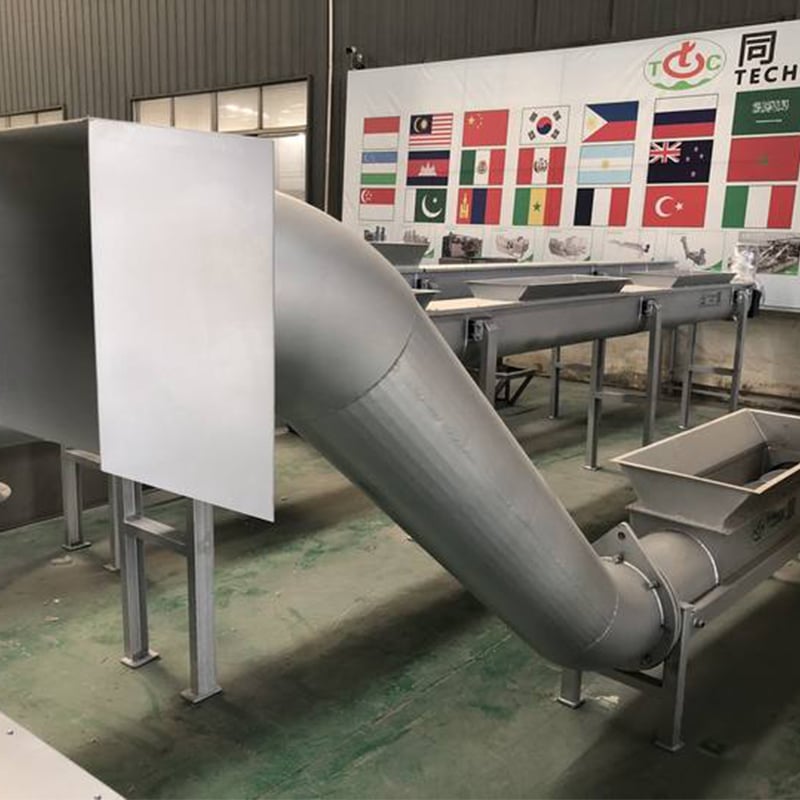

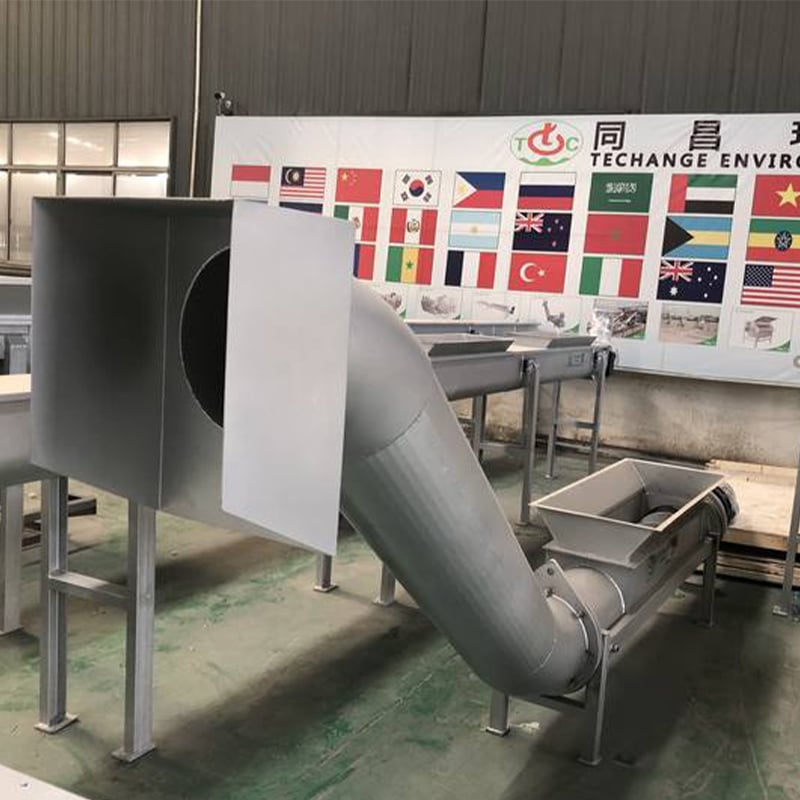

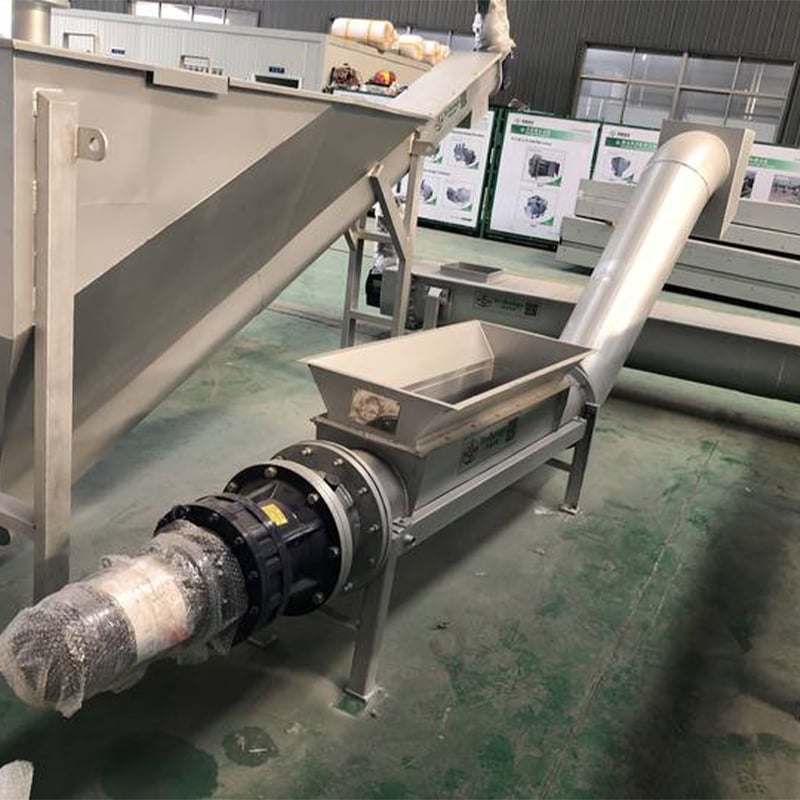

Sludge compactor has main function of press and other function such as residuse conveying and lifting. They are shaft structure that can be used in situations that no long distance conveying and nohigh conveying.
Sludge compactor has main function of conveying function combined with pressing,they are no-shaft structure.
It can be customized as your request.
Technical specification
| Model/Item | WLY-260 | WLY-300 | WLY-360 | WLY-420 | YLY-200 | YLY-300 | YLY-40 |
| Rotation Speed(rpm) | 18-22 | 5-6 | |||||
| Capacity(m/h) | 1.5 | 3 | 4.5 | 6 | 1.5 | 3 | 4.5 |
| Screw diameter(mm) | 220 | 260 | 320 | 380 | 200 | 300 | 400 |
| Conveying longth(m) | 6 | 2.5≤L≤5.5 | |||||
| Power(kw) | 2.2 | 3 | 4 | 5.5 | 1.5 | 2.2 | 4 |
| Degree of density | 70% | ≥90% | |||||
