1. Description:

Design scheme adopting international mature technology system for biological treatment of wastewater treatment technology,

AO2 technology is used to process, the organic combination of traditional biochemical treatment process, water quality purification was achieved by step unit operation, cover an area of an area small, small tank, comprehensive water is better than the current national standards, low content of suspended solids, less equipment, simple process, automatic control,stable and reliable running.

The overall energy consumption of the scheme is lower than that of the domestic equivalent type of treatment system.

The water quality is stable, the core parts have long service life, and the operation cost is low.

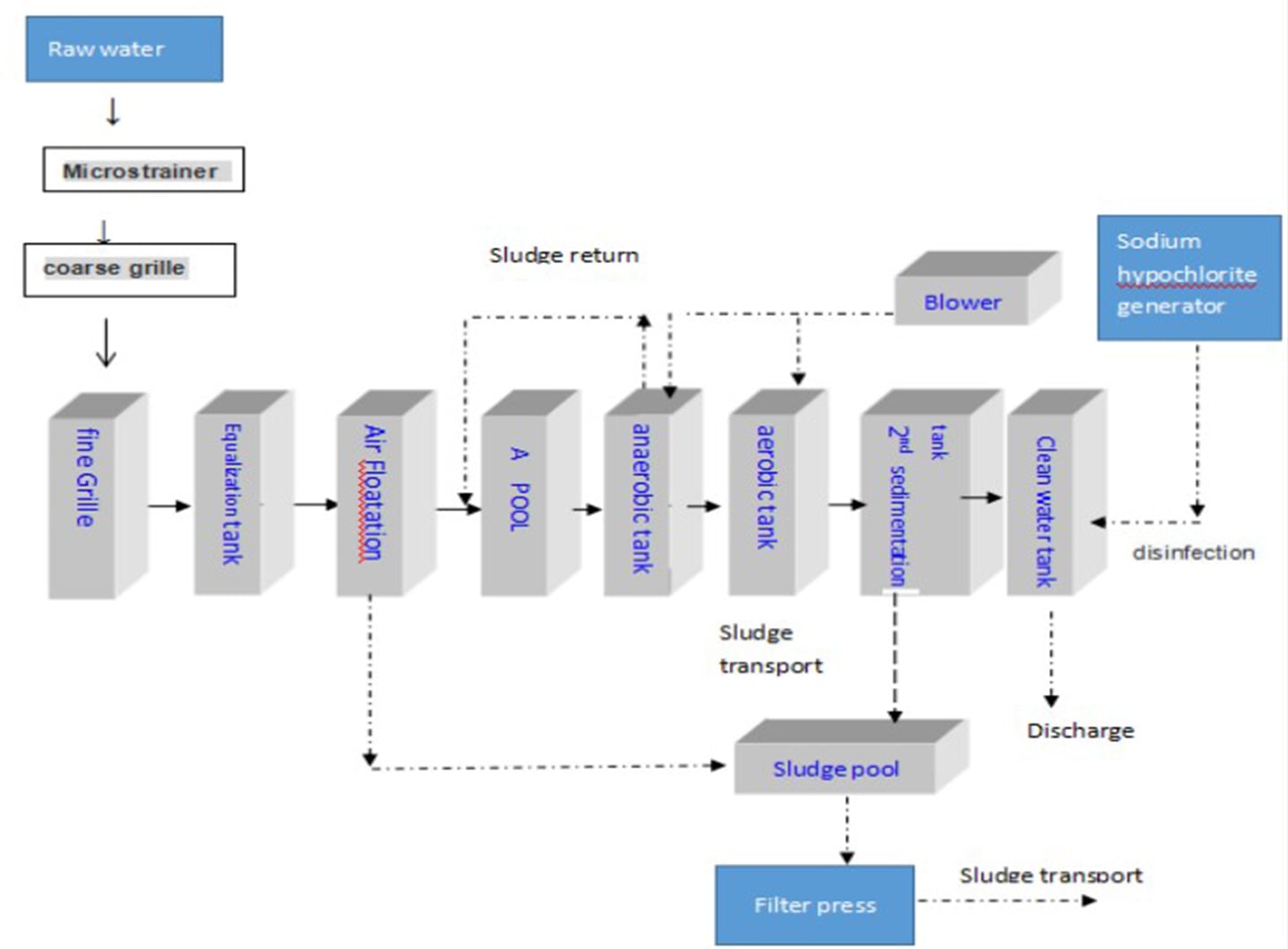

2. Process of Integrated WWTP (A2O)

3. Specification of Integrated WWTP (A2O)

Item		TC-5	TC-10	TC-15	TC-20	TC-30	TC-40	TC-50	TC-60	TC-70	TC-80
Capcity (M3.d)		5	10	15	20	30	40	50	60	70	80
Anoxic tank		0.55x1	0.55x1.5	0.75*1.5	1.15x1.5	1x2	1.1x2	1.4x2	1.5x2.25	1.85x2.25	2.1x2.25
Oxic tank		1x1x1.5	1x1.5	2*1.5	2.1x1.5	2x2	2.1x2	2.5x2	2.8x2.25	3.4x2.25	4x2.25
Sedimentation tank		0.5x1	0.45x1.5	0.75*1.5	1x1.5	0.9x2	1x2	1.25x2	1.3x2.25	1.6x2.25	1.8x2.25
Sludge tank		0	0.5x0.75	0.75*0.75	0.75x0.75	0.7x1	0.8x1	0.9x1	0.9x1.15	1.15x1.15	1.1x1.15
Clean water tank		0.45x1	0.5x0.75	0.75*0.75	0.75x0.75	0.7x1	0.8x1	0.9x1	0.9x1.15	1.15x1.15	1.1x1.15
Blower	Model	2HBH320H36						2HBH520H36
	Qty	2	2	2	2	2	2	2	2	2	2
	Power	1.3	1.3	1.3	1.3	1.3	1.3	2.2	2.2	2.2	2.2
Pump	Model	50WQ2-10-0.75						50WQ6-10-0.75
STP Volume	L(m)	2.5	2.5	4	5	4.6	5	6	6.5	8	9
	W(m)	1	1.5	1.5	1.5	2	2	2	2.25	2.25	2.25
	H(m)	1.5	2	2	2	2	2	2.5	2.5	2.5	2.5
